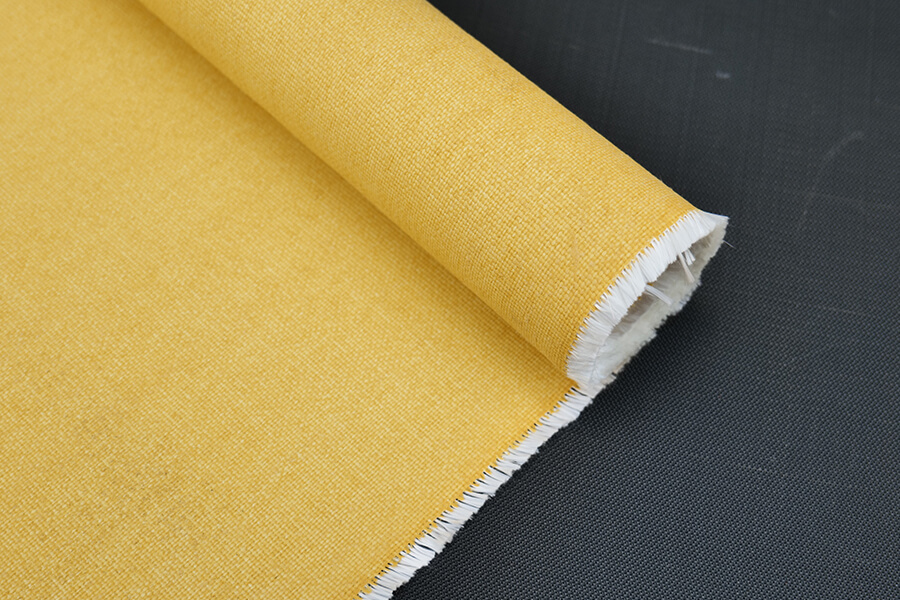

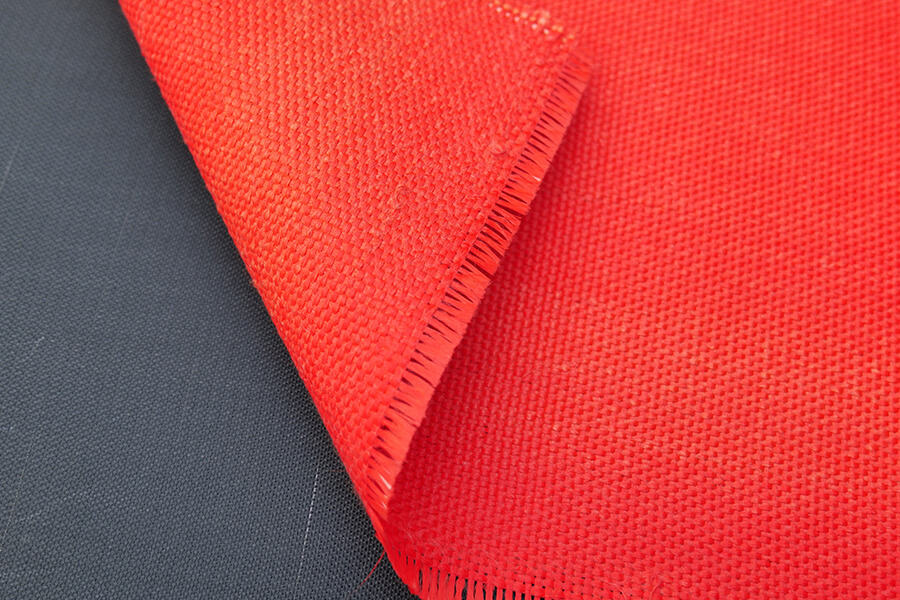

Colored Fiberglass Cloth
Dyed fixed grain glass fiber fabric is made of glass fiber fabric soaked acrylic emulsion, in order to make glass fiber fabric has better mechanical processing properties, easier to cut, cut, sew and meet the characteristics of subsequent processing, to overcome the glass fiber is not wear-resistant, itching shortcomings
Product Detail
Dyed fixed grain glass fiber fabric is made of glass fiber fabric soaked acrylic emulsion, in order to make glass fiber fabric has better mechanical processing properties, easier to cut, cut, sew and meet the characteristics of subsequent processing, to overcome the glass fiber is not wear-resistant, itching shortcomings
Description
The material is a hybrid of carbon fiber and fiberglass. This fabric has a width of 50″, tow size of 3k and is woven in a 2×2 twill weave. This material was woven by reputable weavers across the US, and their long lasting presence in the composite industry will ensure you receive a quality material.
To harden the raw fabric into a usable form, you will need the appropriate resin or epoxy for your project. For the colored materials, we suggest one of our resins which cure clear.
Resin Consumption
Resin consumption is provided for the approximate amount of resin by weight in the final part after processing by vacuum infusion. This does not account for the resin used in the flow lines and consumables such as flow media or breather cloth. Wet-layup by hand will also have a higher resin consumption in the final part and depends on the user’s techniques. Vacuum bagging a wet layup will improve the resin content. Too much resin will cause a weaker part, not stronger. The average rule of thumb is around 45% (+/- a couple of percent). To calculate actual resin % in your part, a burn test is used. For example, you have a part weighing 100 grams, and you would burn off the resin, which would leave the fiber behind. You should have 55 grams of fiber left when your process is working correctly. Due to the variables in processing, it is hard to give an accurate amount of resin needed to purchase for making your part. However, you will have waste no matter what method is used. A suggested ratio is about 1-1.5lbs of resin per lb of fabric purchased.
